Bluetooth Mouse Shell Mold

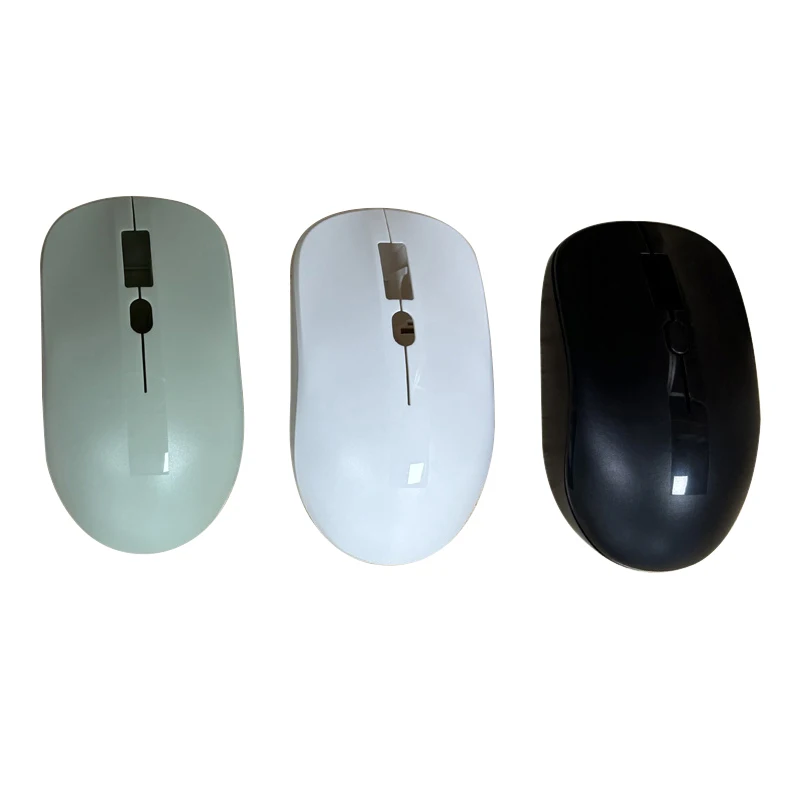

This computer mouse is designed with a clamshell structure, and its components, including the upper shell, scroll wheel, optical lens assembly, scroll wheel shaft, and lower shell, are all manufactured through injection molding. The lower shell features a complex design with multiple reinforcing ribs and pillar placements.
GV MOLD has carefully crafted the mold design, carried out precision mold machining, and strictly controlled the injection molding parameters throughout the production process. This diligent methodology has effectively prevented any potential defects such as flashing, incomplete filling, flow marks, air traps, warping, silver streaks, and cold slug formation in the mouse's outer shell, thereby ensuring a flawless final plastic product.
Bluetooth Mouse Shell Mold Design
Mold design is a critical phase that defines the quality and performance of the mouse. The aesthetic surfaces of the mouse plastic shell, including the outer face and edges, require gate locations to be concealed to maintain their appearance. Therefore, a subsurface gate design is implemented. The mouse's shell features intricate undercut structures, which demand the inclusion of a sophisticated lifter mechanism to aid in the molding and ejection processes. The arrangement of ejector pins is carefully planned to ensure an even distribution of force during the ejection stage, reducing the likelihood of shell deformation or surface damage. GV MOLD's design experts have thoroughly weighed the aspects of overall quality and ease of maintenance, delivering an optimal and finely tuned mold solution to our clients.
Operators carefully select cutting parameters such as cutting speed, feed rate, and cutting depth to minimize machining discrepancies. Additionally, precision Electrical Discharge Machining (EDM) techniques are employed to achieve an enhanced surface finish and greater dimensional precision. The mold-making operation is meticulous, with each step carefully monitored to ensure that the mold cavity and core are machined with exacting standards, and that the overall mold assembly aligns perfectly, allowing for the production of mouse shells with the highest level of detail and fit.
Through injection molding, mouse with different features can be produced, such as two-button mouse, three-button mouse, scroll mouse, sensor mouse, wireless mouse, 3D mouse, trackball mouse, and more.
Through specialized and customized product development, mouse shell molds are designed to produce plastic shells that are not only aesthetically pleasing but also durable and functional, meeting the stringent standards required for today's sophisticated input devices.
Plastic shell molds for mouse are produced with the highest level of detail and quality. Whether it's a sleek and minimalistic design or a feature-rich gaming mouse, plastic molds are engineered to handle complex geometries and tight tolerances, providing a perfect fit for components and a seamless user experience.
GV MOLD designs and manufactures mouse shell molds with various features, offering users a richer and more personalized selection.
Product details
Product parameter
|
Plastic Material |
ABS |
|
Mould Steel |
S136 |
|
Mold Component Standard |
LKM |
|
Feeding System |
Cold runner, Subgate |
|
Mould Life |
300,000 shots |
|
Packing |
Vacuum+plywood wooden case |
