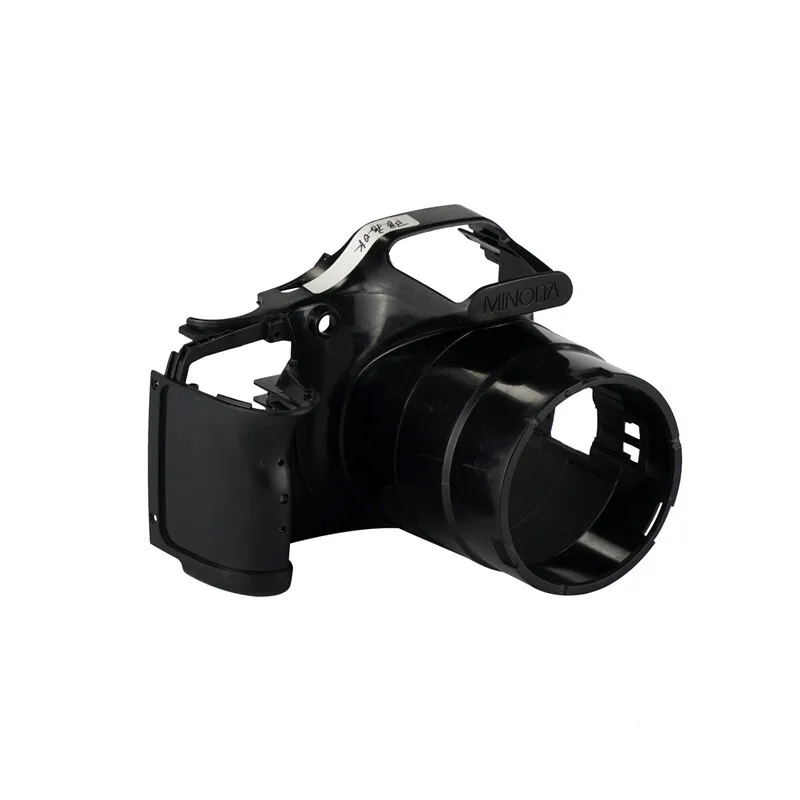

Custom Plastic Injection Mold for Camera Enclosure
A digital camera enclosure is a precision electronic component, for which a refined appearance is a basic requirement. It must possess sufficient strength to ensure that the assembled product does not break if dropped on the ground.
Therefore, the machining of the camera enclosure mold must meet stringent precision requirements, including ensuring the positional accuracy and dimensional consistency of each feature, as well as maintaining the parallelism and perpendicularity of the injection mold. This guarantees that the produced camera housings will meet design standards and fulfill functional and assembly requirements.
This mold is designed with a single-cavity structure and adheres to the LKM mold base specification. The slider's parting line is maintained at less than 0.01 mm, and the hole positions, as well as the internal structural elements on the slider, are subject to strict assembly requirements.
Gate Type
This injection mold is designed with a pin-point gate, which allows for precise control over the flow direction and speed of the plastic melt. The pin-point gate is very small, reducing gate marks and improving the appearance quality of the plastic part. Material waste is minimized, and it is easy to remove and trim the gate afterward, which reduces the workload of secondary processing and saves costs.
Plastic Material Selection
Utilizing a high-performance PC/ABS blend with UV resistance and compliance to stringent V0 flame-retardant standards, the camera enclosure is designed to ensure durability and longevity, thereby extending the operational lifespan of the enclosure in outdoor environmental conditions.
Product details
Product parameter
|
Mold Steel |
H13 |
|
Mold Cavity |
1 cav. |
|
Surface finish |
Polish |
|
Feed System |
Pin point gate |
|
Injection Machine |
260 T |
|
Mold Size |
454*410*546 mm |
|
Mold Weight |
780 kgs |
|
Mold Life |
500,000 shots |
|
Maintenance |
Cleaning the mold and spraying anti-rust agent. |
|
Package |
Waterproof bag and wooden box |
